產品介紹
玻璃纖維布膠帶
Glass Cloth Tape
性能及應用領域
Specification and Application
該膠帶以進口高密度玻璃纖維布為基材，適用于變壓器，高溫設備，空調接觸器，線圈包扎及馬達等其他高溫特殊環境應用，具有強拉力，抗摩擦，耐高溫，耐溶劑性，絕緣，耐燃性佳等特性。符合ROHS環保無鹵等優點。
Using high density glass cloth as backing, coated high temperature resistant silicone adhesive. With advantages of high tensile strength, anti-friction, thermo-stability, solvent resistance, excellent insulation ability and good flame resistance. The tape is mainly used in transformers, AC contactor, motor and other high temperature devices for insulation purpose. It is halogen free, meets RoHS criteria.

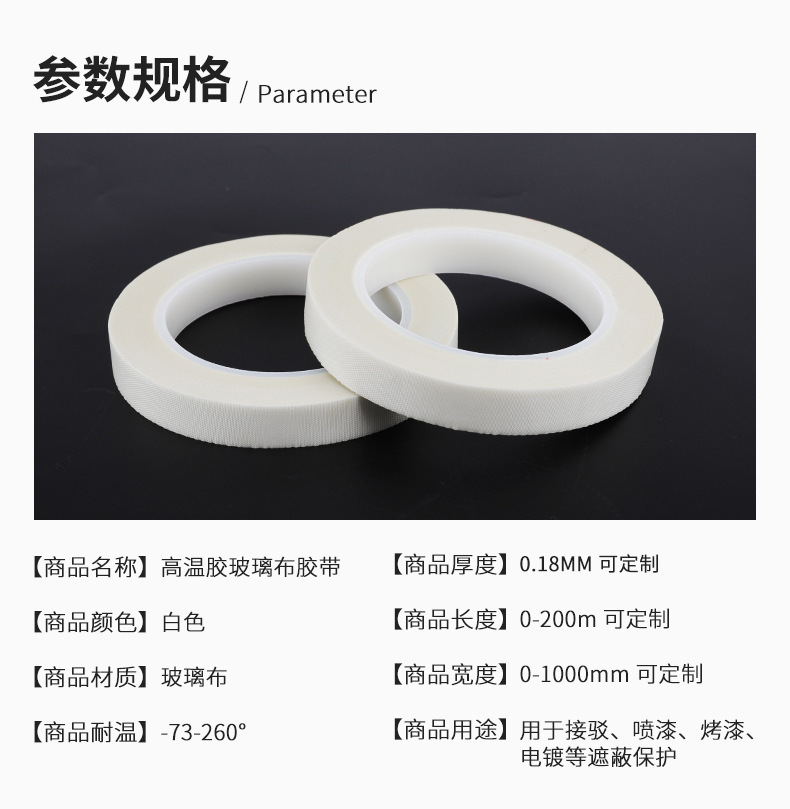

玻璃纖維布膠帶參數表
Glass Cloth Tape Technical Data
Model | 基材 Backing | 膠黏劑 Adhesive | 標準尺寸 Standard Size | 一般特性 General Characteristics | ||||
材質 Material | 顏色 Color | 厚度 Thickness (MM) | 規格 Specification | 粘著力 Adhesion Force (N/25MM) | 伸長率 Elongation (%) | 耐溫性 Temperature Resistant (℃) | ||
ZCH-G18 | Glass Cloth | White | 硅膠 Silicone | 0.18 | 3MM-500MM*30M | 10 | 4 | 280 |
ZCH-GD | 玻璃布 Glass Cloth | 白色 White | 硅膠 Silicone | 0.2 | 3MM-500MM*30M | 10 | 3 | 280 |
(1) 試驗環境為溫度 23±5℃及溼度 55±10%RH。
(2) 建議操作環境為 10℃~35℃。
(3) 勿置于高溫、潮濕及日照處。
(4) 適當環境下，保存期限一年。
(5) 使用前請先測試，以免被貼物表面不穩定物質影響膠性。
說明：以上諸項技術指標乃本公司采用公認可靠方法檢驗的平均數據，為確保正確使用本公司產品，請您基于使用對象，先行對使用目的與條件做詳盡了解，以便我司為您提供準確產品。
Note:Above data are based on the tests of acknowledged methods. In order to using our product correctly, please check the data and understand your application purpose first. After that, we will recommend the most suitable products.
